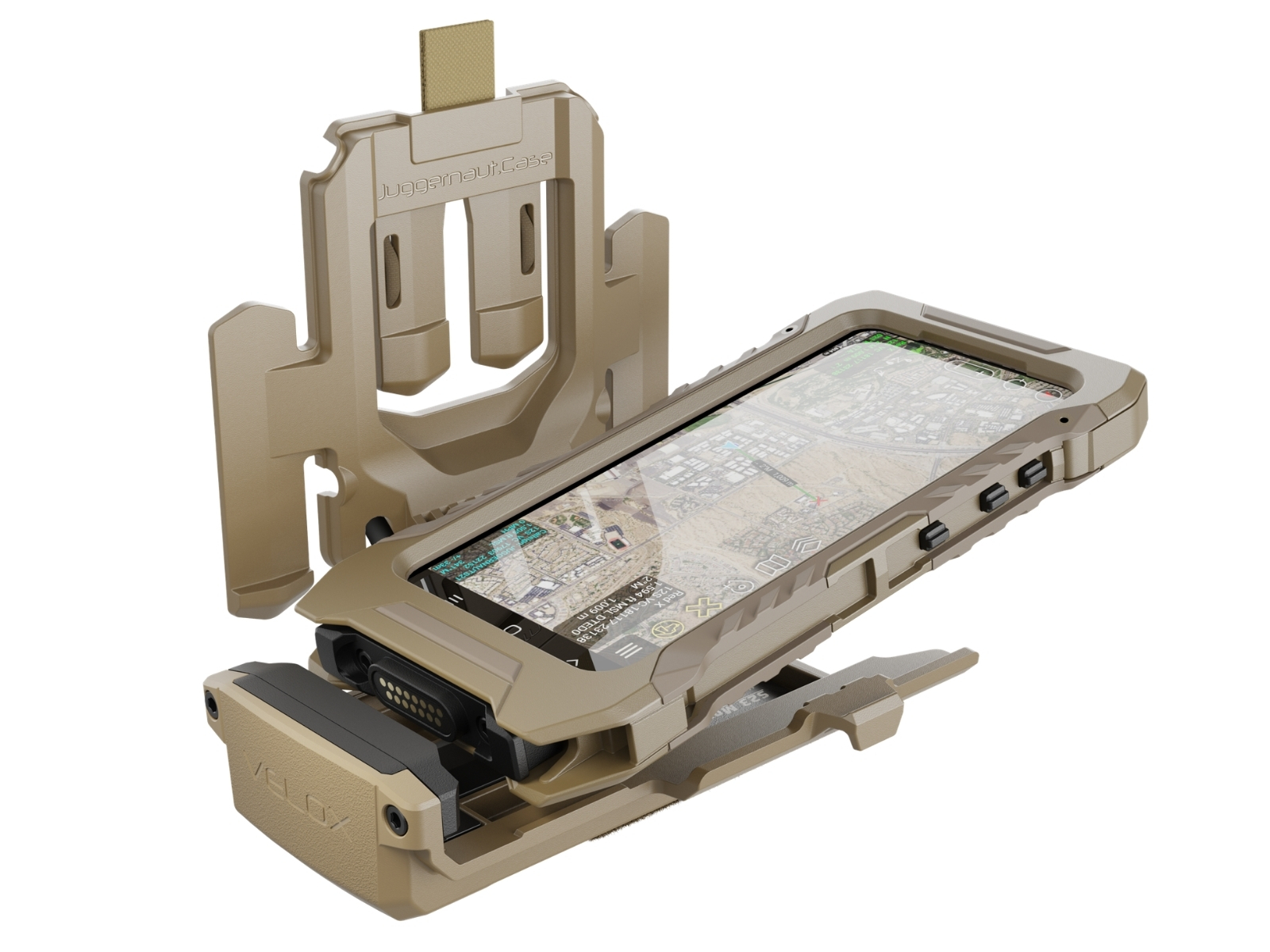

Armor Mount
The VELOX Armor Mount builds on Juggernaut's most widely used mounting platform and takes mission capabilities to the next level. Instead of running a cable directly from the EUD case to a tactical hub or radio, VELOX moves the cable interface into the mount.
Faster transitions. Cleaner connections.
The VELOX Armor Mount helps operators move through changing mission sets without fighting cables. The EUD can be mounted, removed, and re-mounted faster while power and data stay routed through the mount for a cleaner, more controlled setup.
Instead of managing a cable from the device side, the connection stays anchored to the kit. That helps reduce snag points and keeps the operator ready to move between different operational environments.
Explore the VELOX Armor Mount.
View the key Armor Mount areas, including the front view, open view, first-person view, 15-pin interface, and integration points.

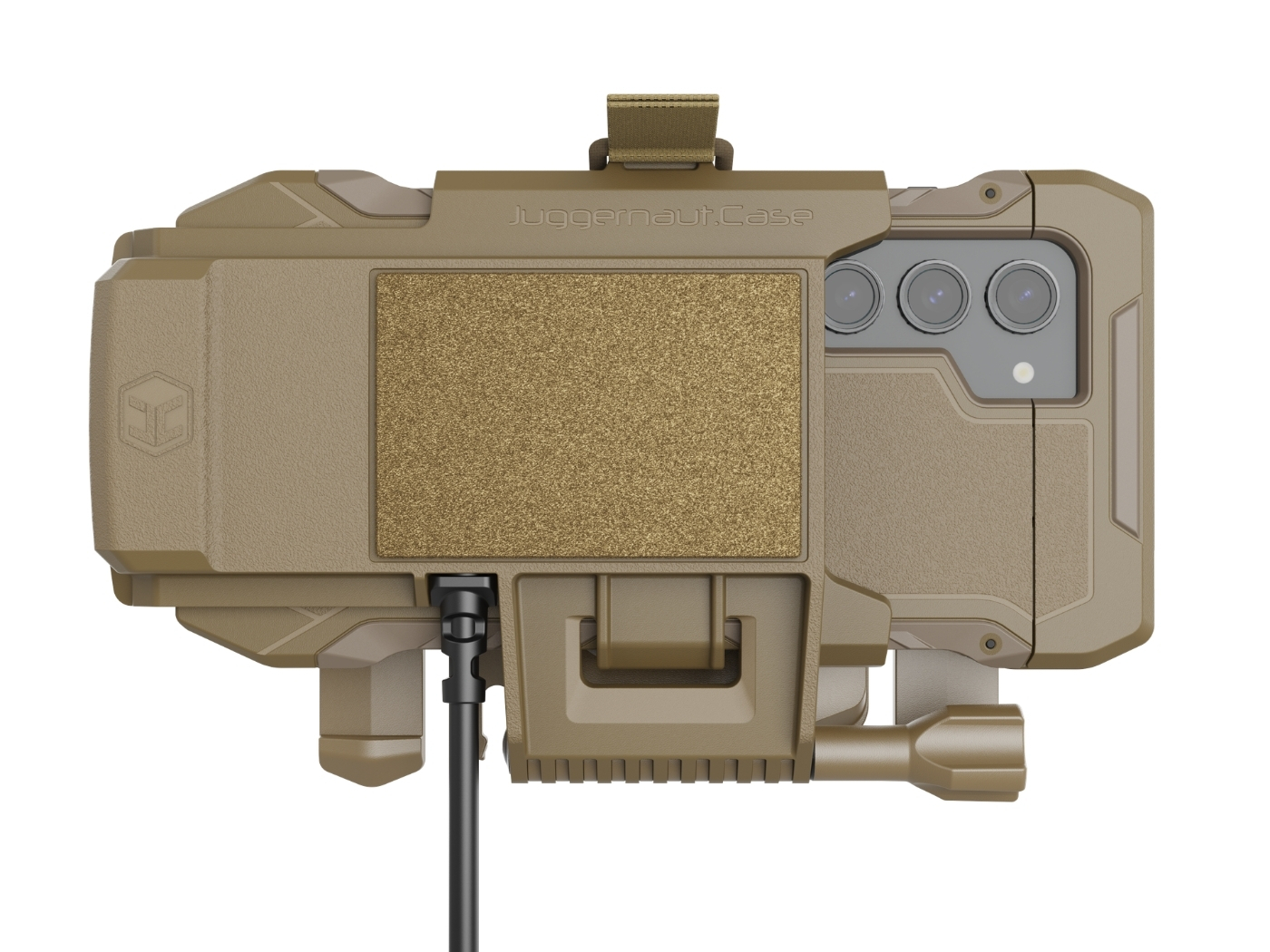

Seated and secured
The OPRTR case secures into Armor Mount after the Smart-Block and mount-side interface are aligned.
- Secure fit The case ribs lock into the mount body for stable carry.
- Low-profile position Keeps the EUD close to the carrier.
- Controlled connection Power and data move through the mount-side interface.

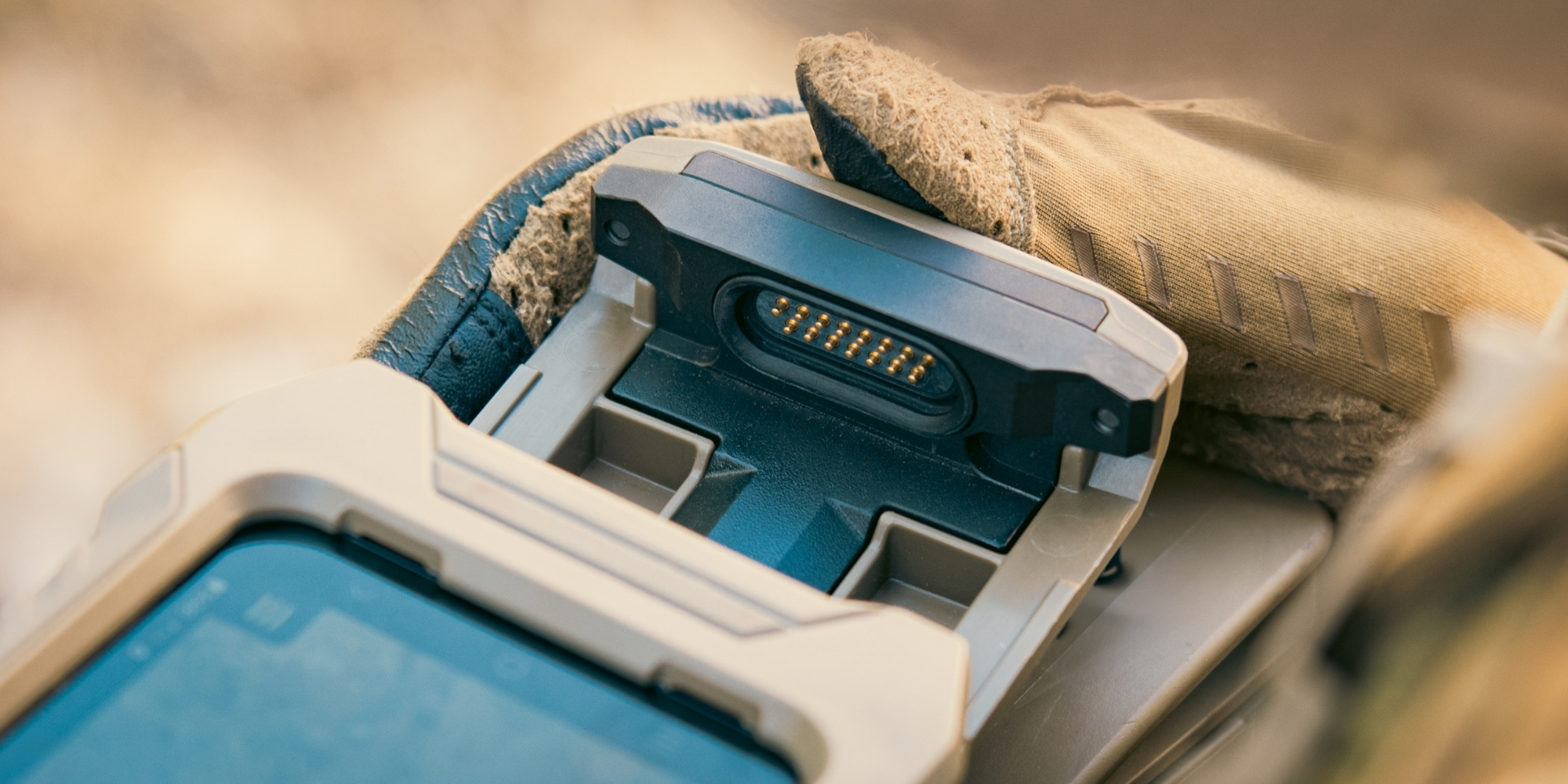

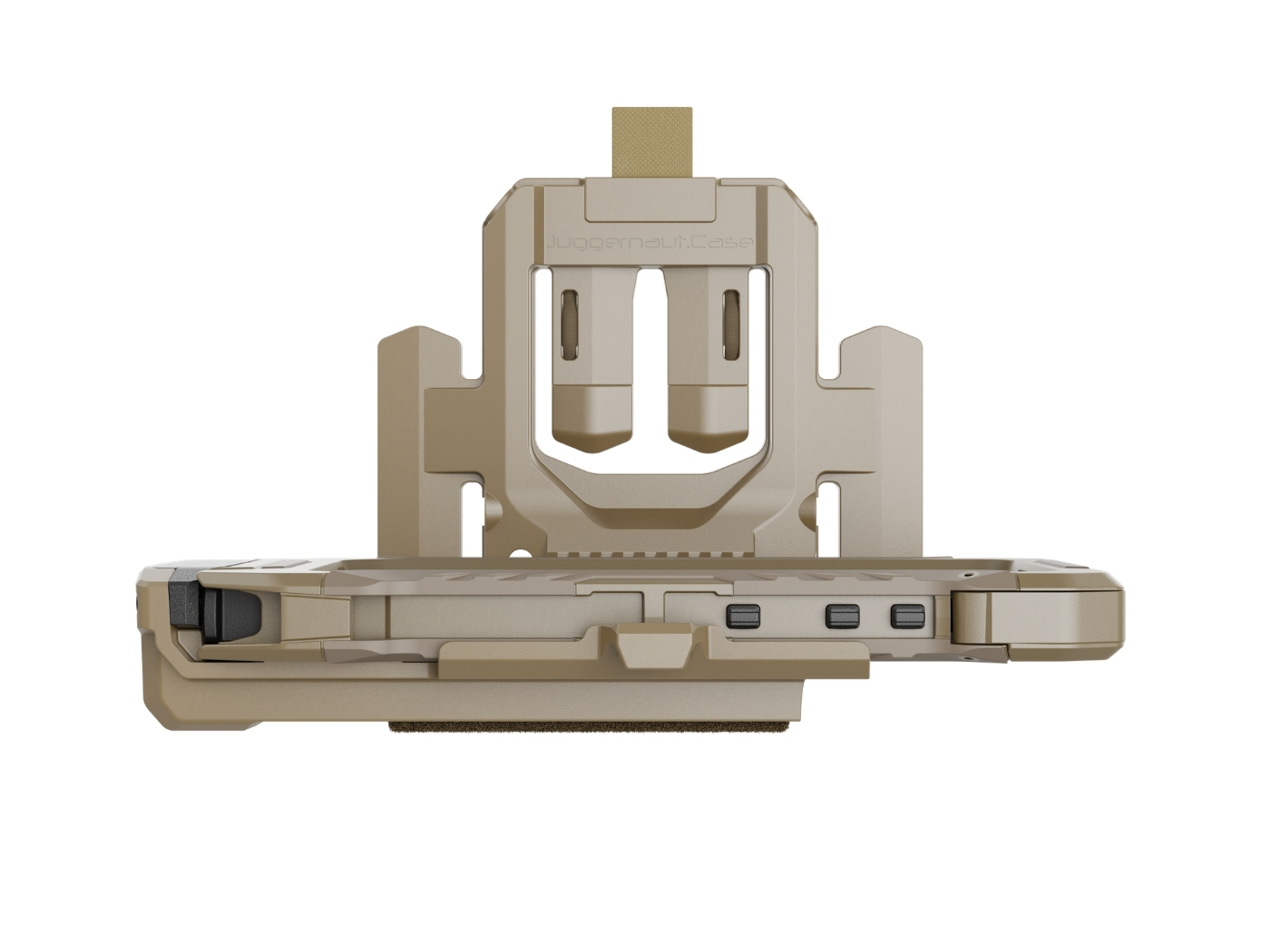

Open access to the mount-side interface.
The embedded cable module in Armor Mount aligns with Smart-Block to create a sealed, secure power and data path.
- Smart-Block alignment The 15-pin receptacle lines up with the Smart-Block module in the OPRTR case.
- Protected connection The mount works with the shielded Smart-Block interface and EMI gasket.
- Kit-based use The EUD remains mounted while the connection routes into supported comms equipment.

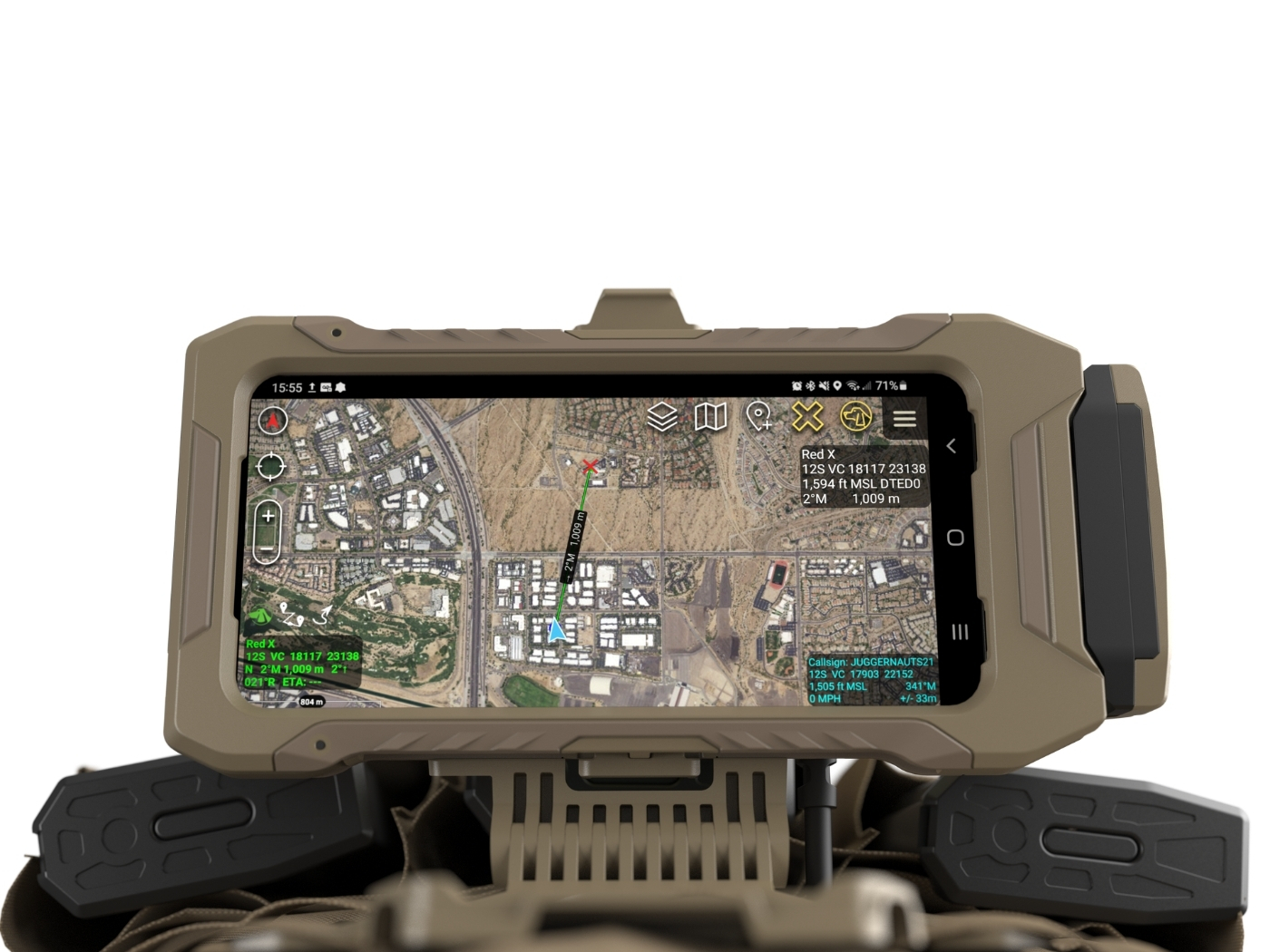

Built for how operators move.
Armor Mount keeps the EUD available on kit while the embedded cable tucks neatly behind the kit.
- Accessible position Keeps the EUD in a usable location during mission use.
- Cleaner cable path Cabling routes through the mount instead of hanging off the device.
- Field-ready carry Supports the mounted EUD mission with fewer loose connection points.

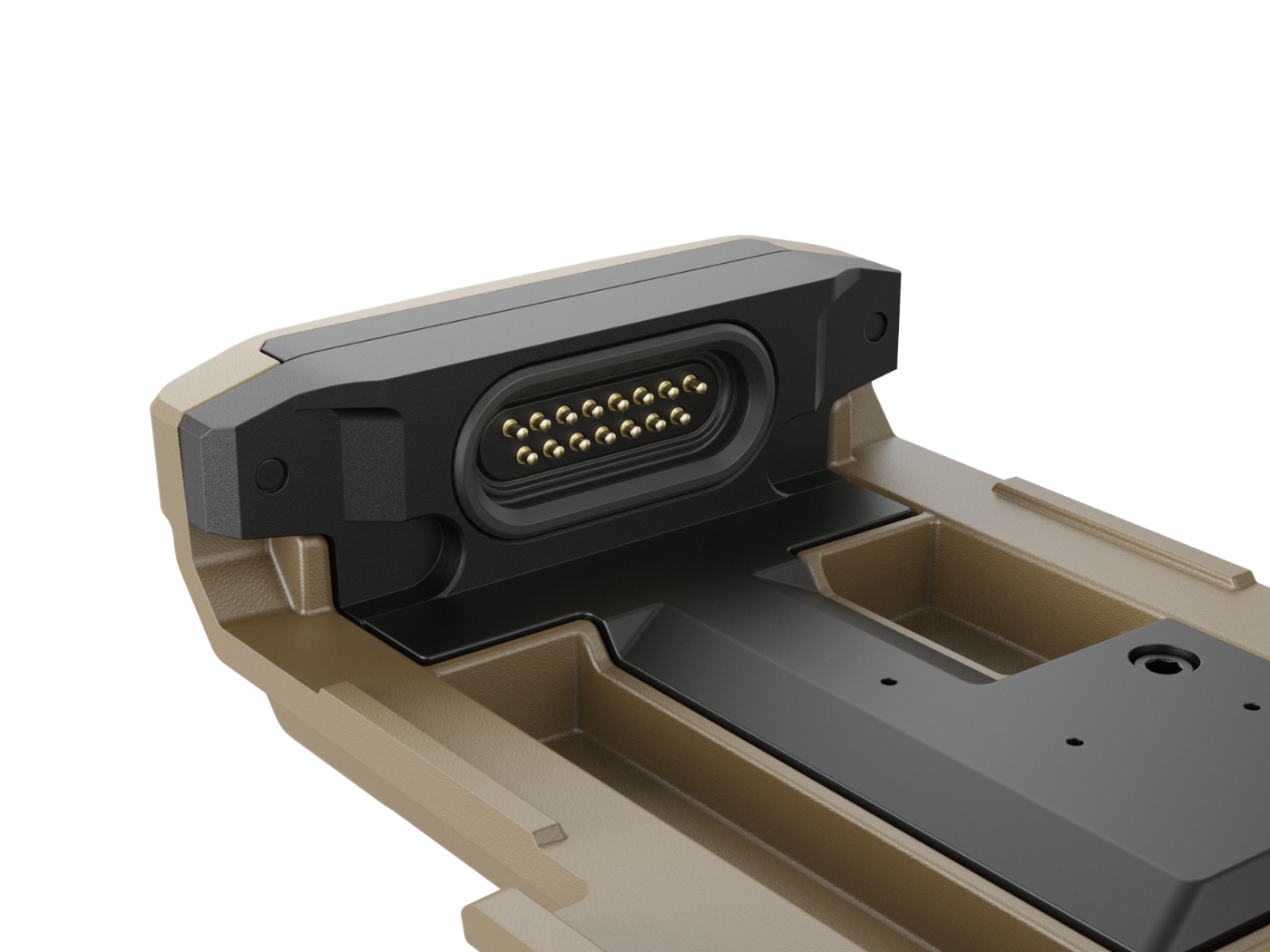

Smart-Block to Armor Mount.
The VELOX Armor Mount 15-pin module connects to the shielded Smart-Block interface.
- 15-pin connection Mates with Smart-Block to carry power and data through the mount.
- Shielded interface The Smart-Block housing and EMI gasket support the connection area.
- Controlled routing The cable exits from the mount side instead of the device side.

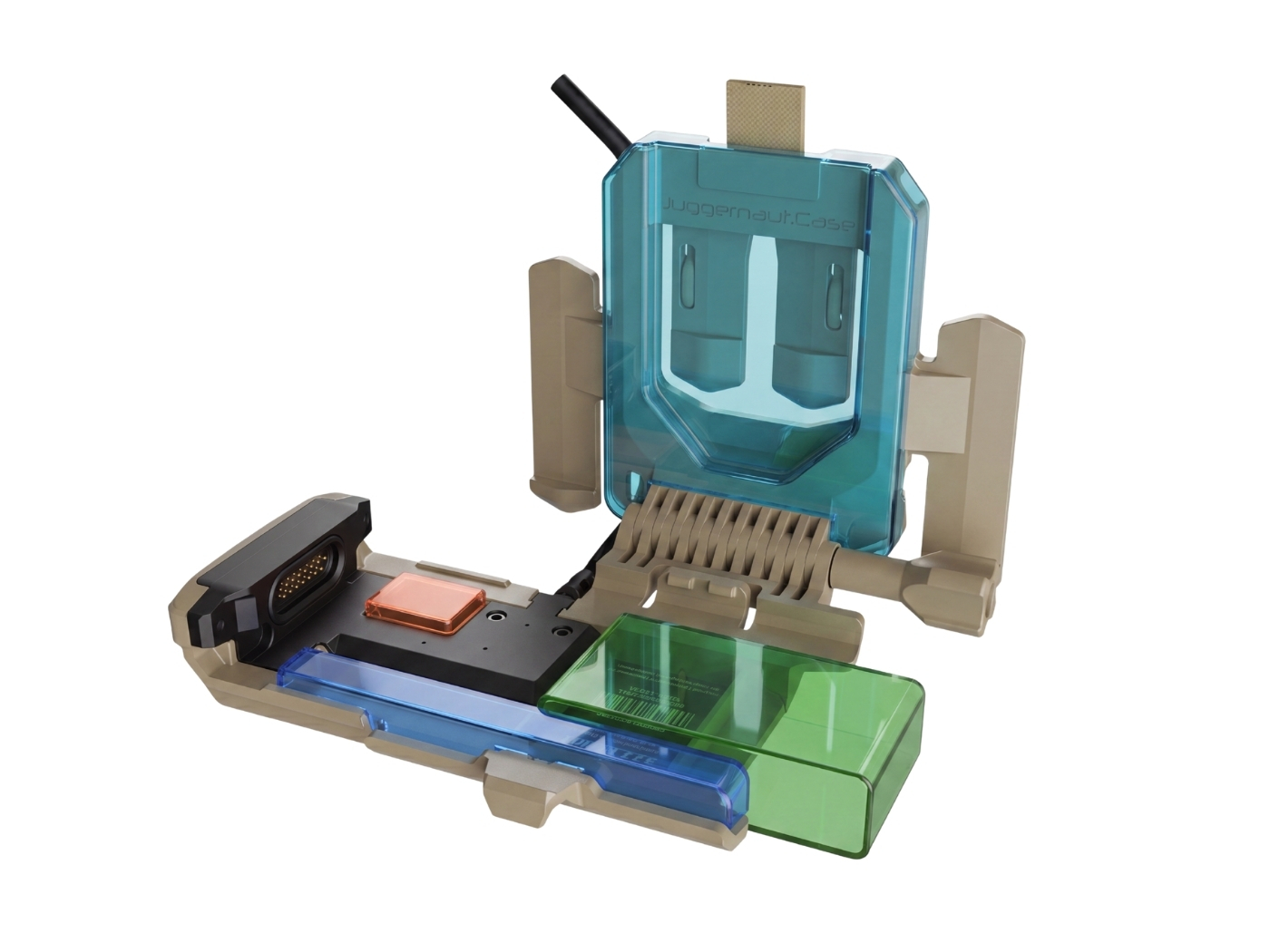

Designed for interoperability.
The mount creates a defined point to evaluate partner technology around the VELOX power and data path.
- Peripheral connection Supports operations between the EUD and the connected radio or hub equipment.
- Integration review Custom requirements can be scoped based on the comms setup.
- System roadmap Designed as part of the broader VELOX ecosystem.
Route from the mount, not the device.
Armor Mount routes cabling behind the mount base through four rear channels. This helps keep the user's load carriage optimized with clean lines and a low profile.
Current termination options.
Choose the cable termination that matches your supported radio, tactical hub, or comms equipment.

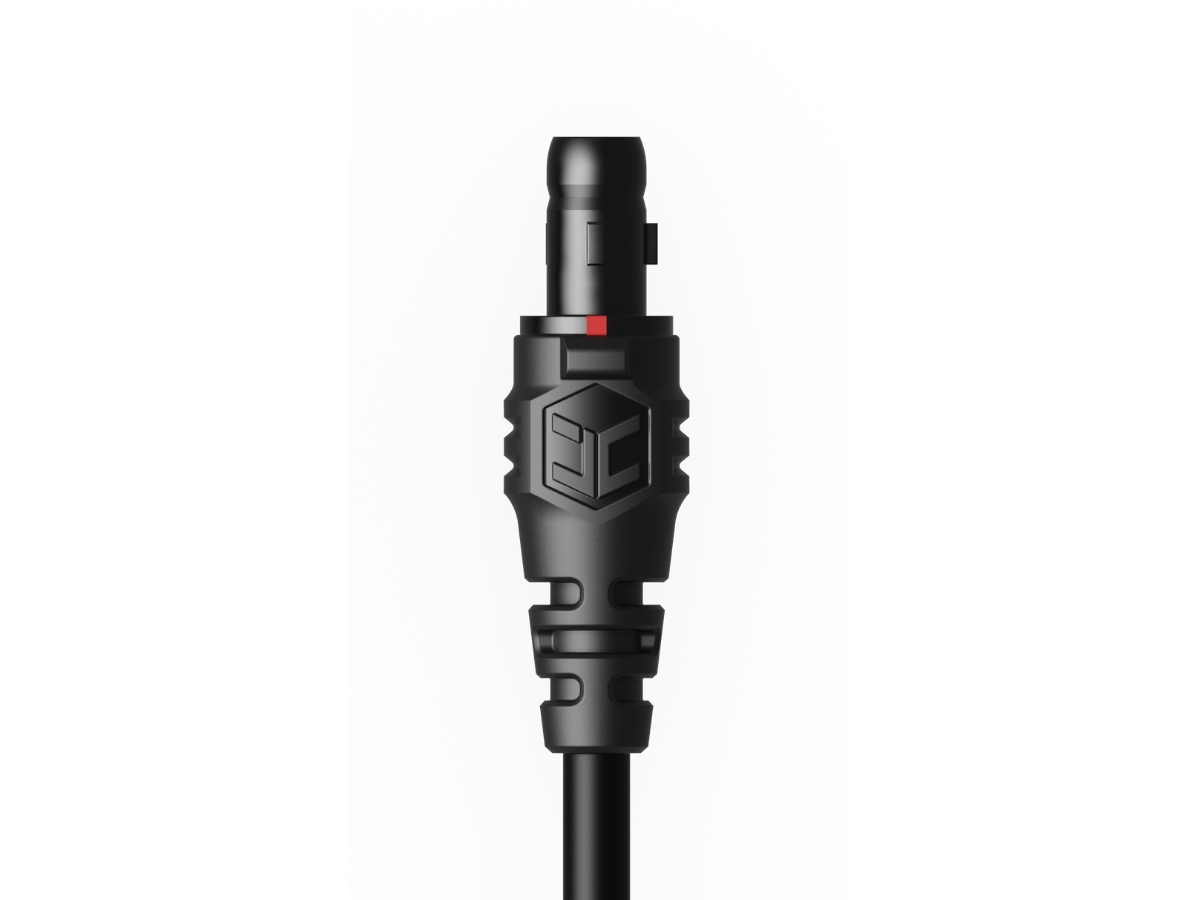

Nett Warrior
6-pin Nett Warrior termination option for supported VELOX Armor Mount configurations.

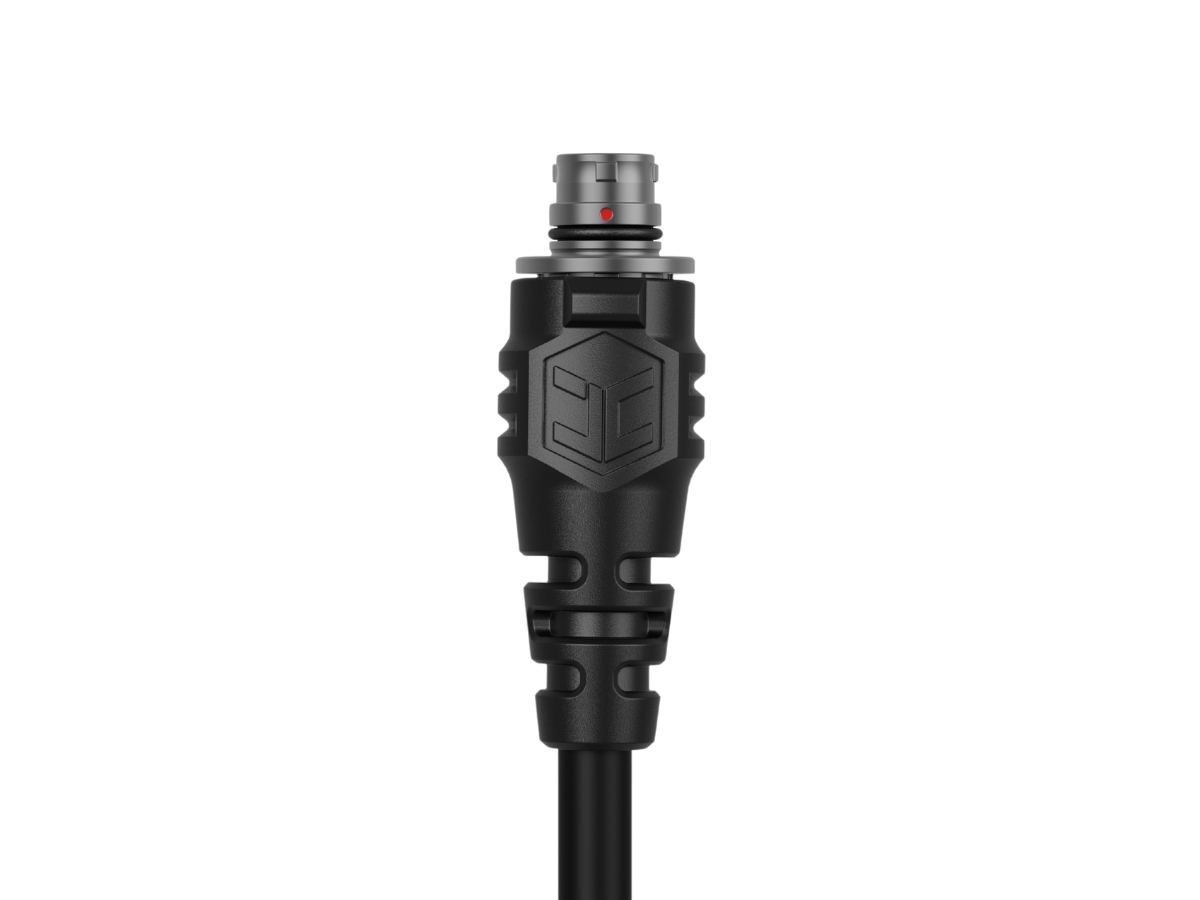

ODU
12-pin ODU termination option for supported radio configurations.

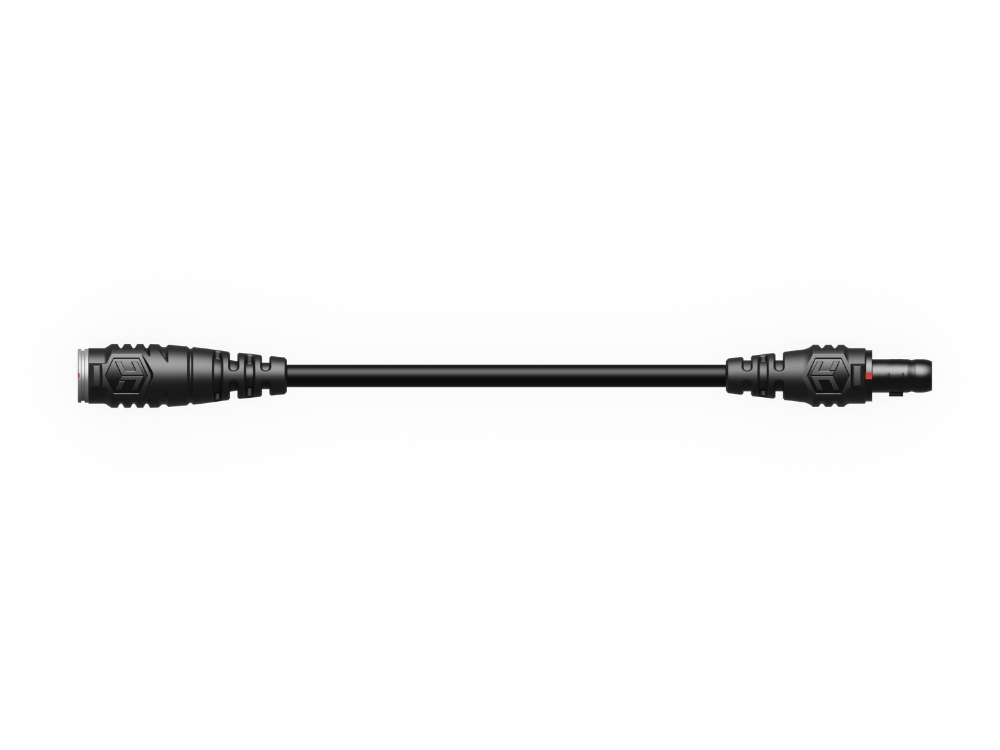

Adapter Cable
Adapter cable with ODU 12-pin receptacle to Nett Warrior 6-pin plug for mission flexibility.
The most common configuration for direct connectivity to an L3Harris 163 radio can be ordered as a kit. This kit includes an S23 OPRTR case, VELOX Smart-Block, and VELOX mount with a 24" cable terminated to a 12 pin ODU connector. That kit part number is: JG.VXKIT.S23.24.02-FDE
Armor Mount specs.
The Juggernaut VELOX Ecosystem incorporates patented RAM® Mount technology that practices one or more patents related to GDS® IntelliSkin® technology, which can be found HERE.
Pairs with the rest of the system.
Use Smart-Block to create the interface, Armor Mount to secure the EUD on kit, and the dock or field cable options to support charge, sync, and redeployment workflows.
VELOX Smart-Block
Replaces the OPRTR QD door and creates the 15-pin USB 3.2 interface.
VELOX Charge/Data Dock
Six-bay dock for team-level charge, sync, data transfer, and redeployment.
VELOX Field Cable
Direct 15-pin to USB-C power and data connection for Smart-Block equipped OPRTR cases.
Armor Mount ICD
Need interface details for VELOX Armor Mount integration? View the Mount ICD for mechanical layout, interface details, cable termination requirements, and supported configuration reference.
Build Your Mission Setup.
Share your requirements. Our team can help scope the right VELOX build.
