VELOX Ecosystem

Smart-Block

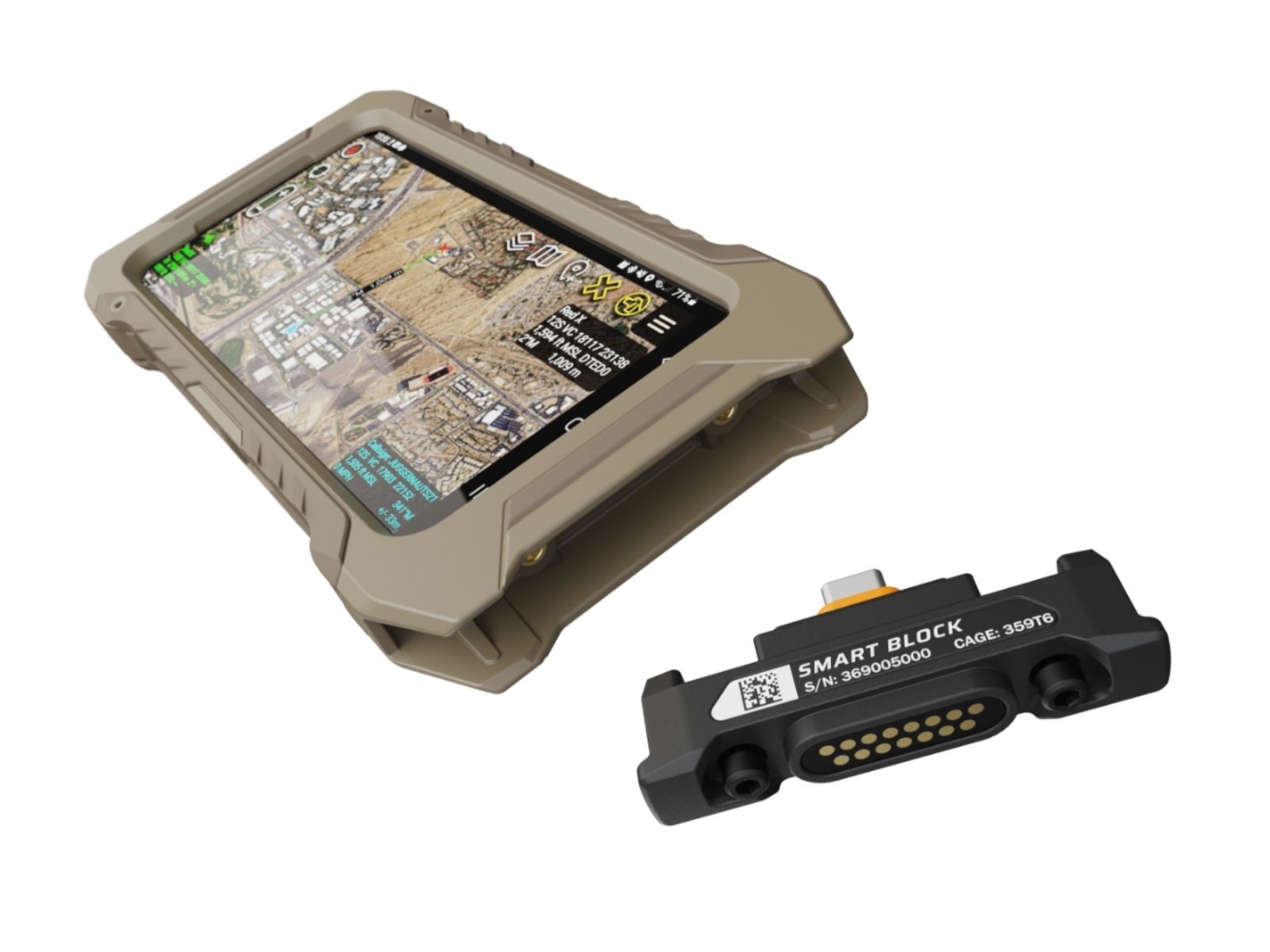

VELOX Smart-Block replaces the OPRTR Quick Disconnect door and creates the powered interface for VELOX mounting, charging, and data transfer.

QD Door Replacement Installs in place of the OPRTR Quick Disconnect door.

Protected Interface Keeps the EUD in the case, carrying the USB-C connection to the Smart-Block.

15-Pin Connection Routes power and data through the VELOX 15-pin interface.

The Solution

Never remove the EUD from the case.

VELOX Smart-Block gives teams a rugged external connection point for charging, data, and mounting. The EUD stays protected inside the OPRTR case, maintaining a sealed connection.

Protect

Keep the device protected.

The EUD stays inside the OPRTR case during setup, charge, sync, and turnover.

Connect

Use one external interface.

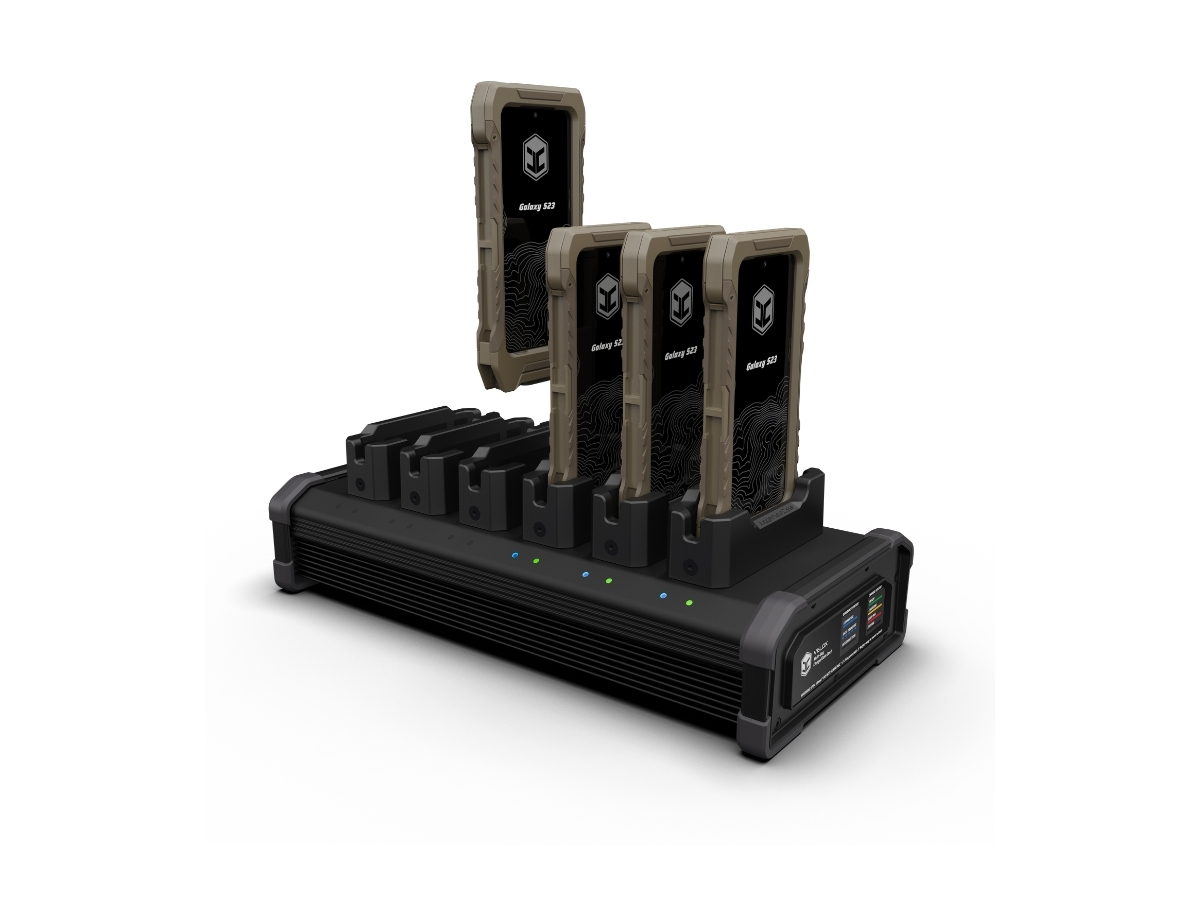

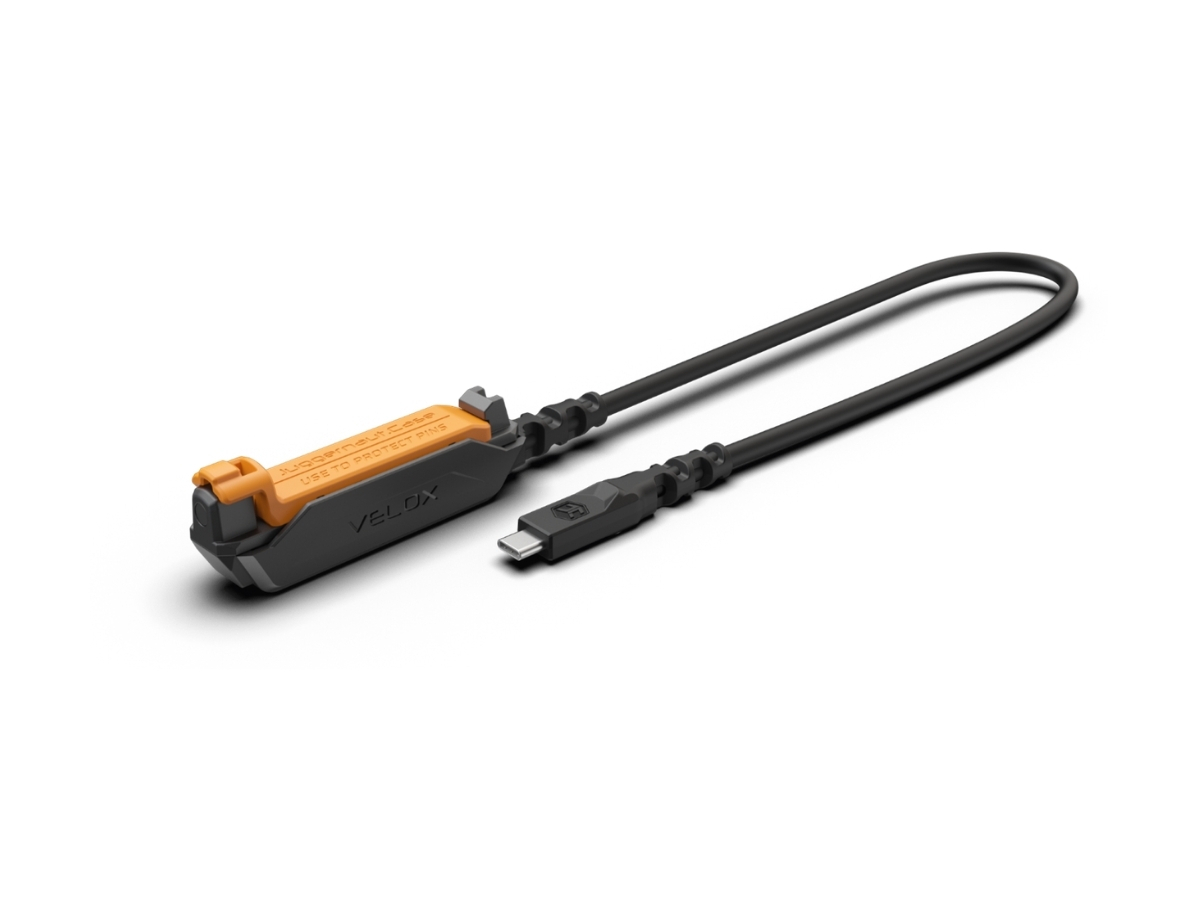

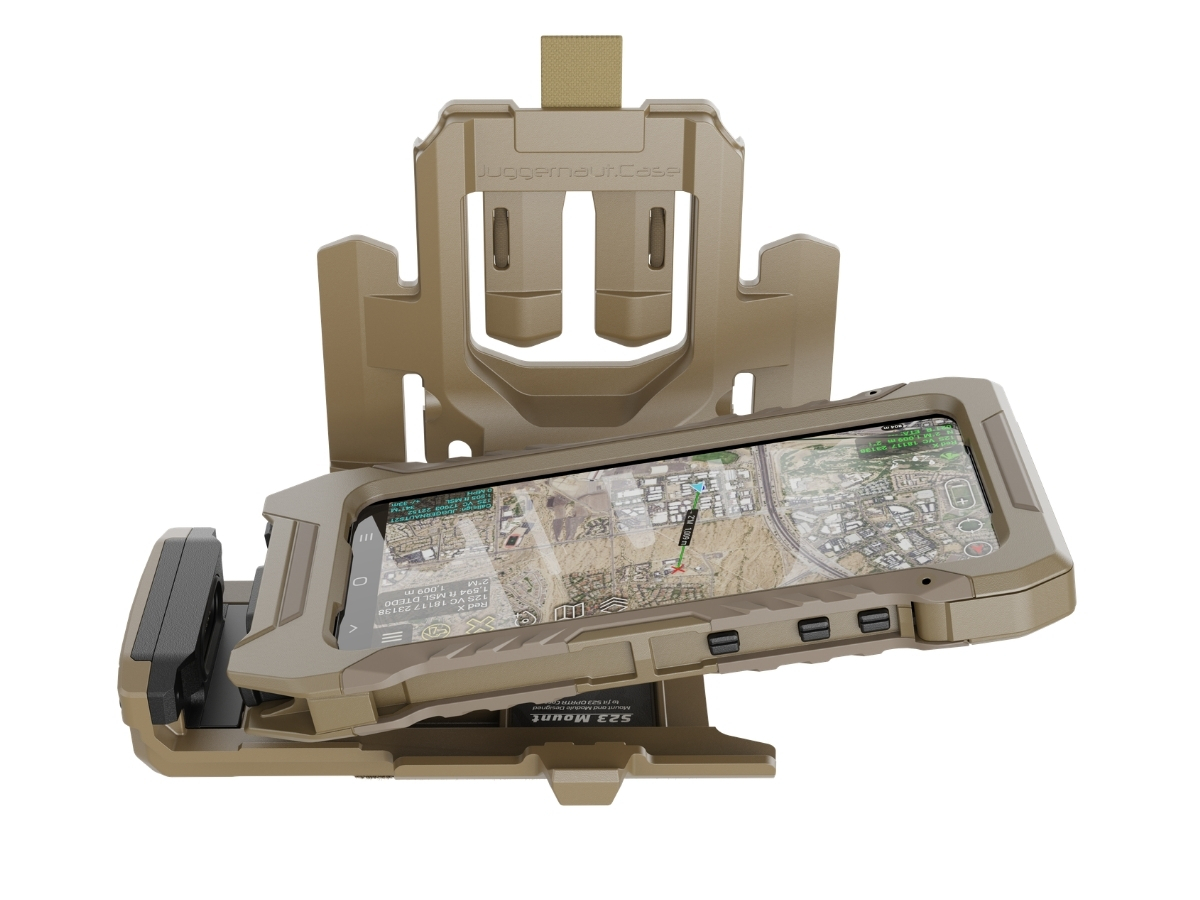

Smart-Block becomes the connection point for VELOX mounts, docks, and field cables.

Move Faster

Reduce device handling.

Teams can move from kit to dock to field cable without removing the EUD from the case.

How It Works

Install once. Connect across VELOX.

Remove the OPRTR QD door, install Smart-Block, and connect the protected case into supported VELOX components.

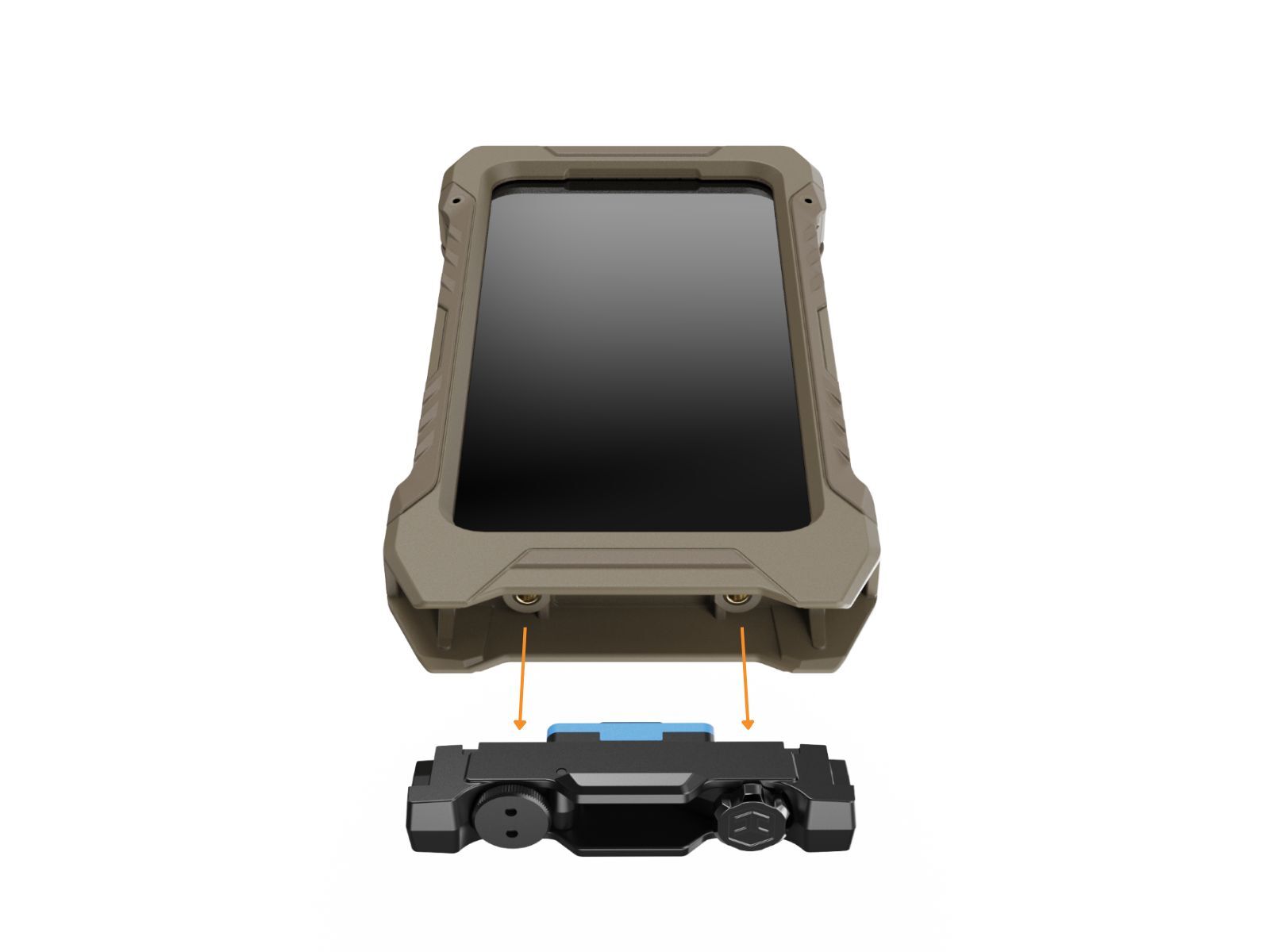

Remove

Remove the QD door.

The standard OPRTR QD door comes off to make room for the Smart-Block interface.

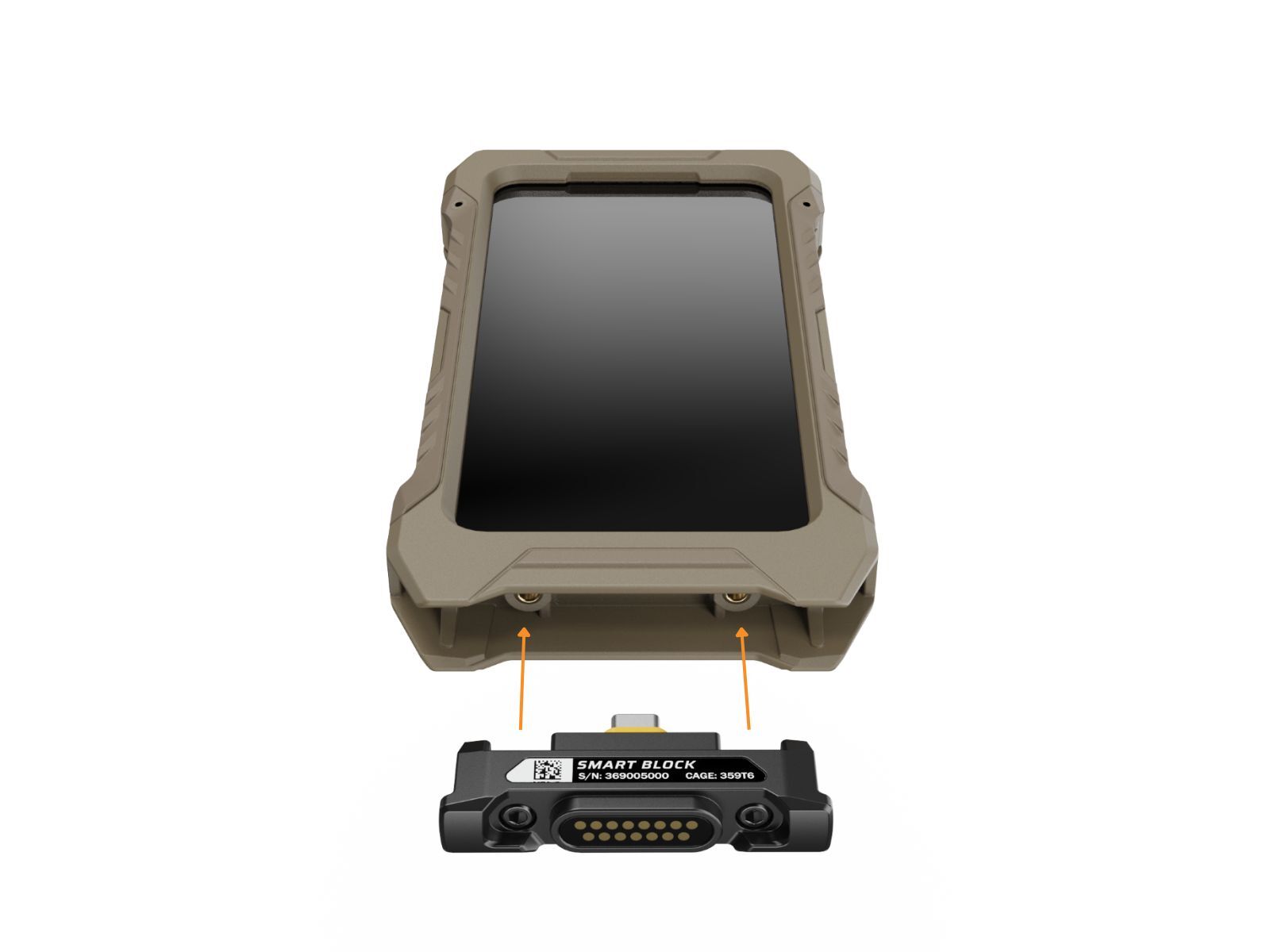

Install

Secure Smart-Block.

Smart-Block installs with a captive socket screw. A 7/64" hex drive is included.

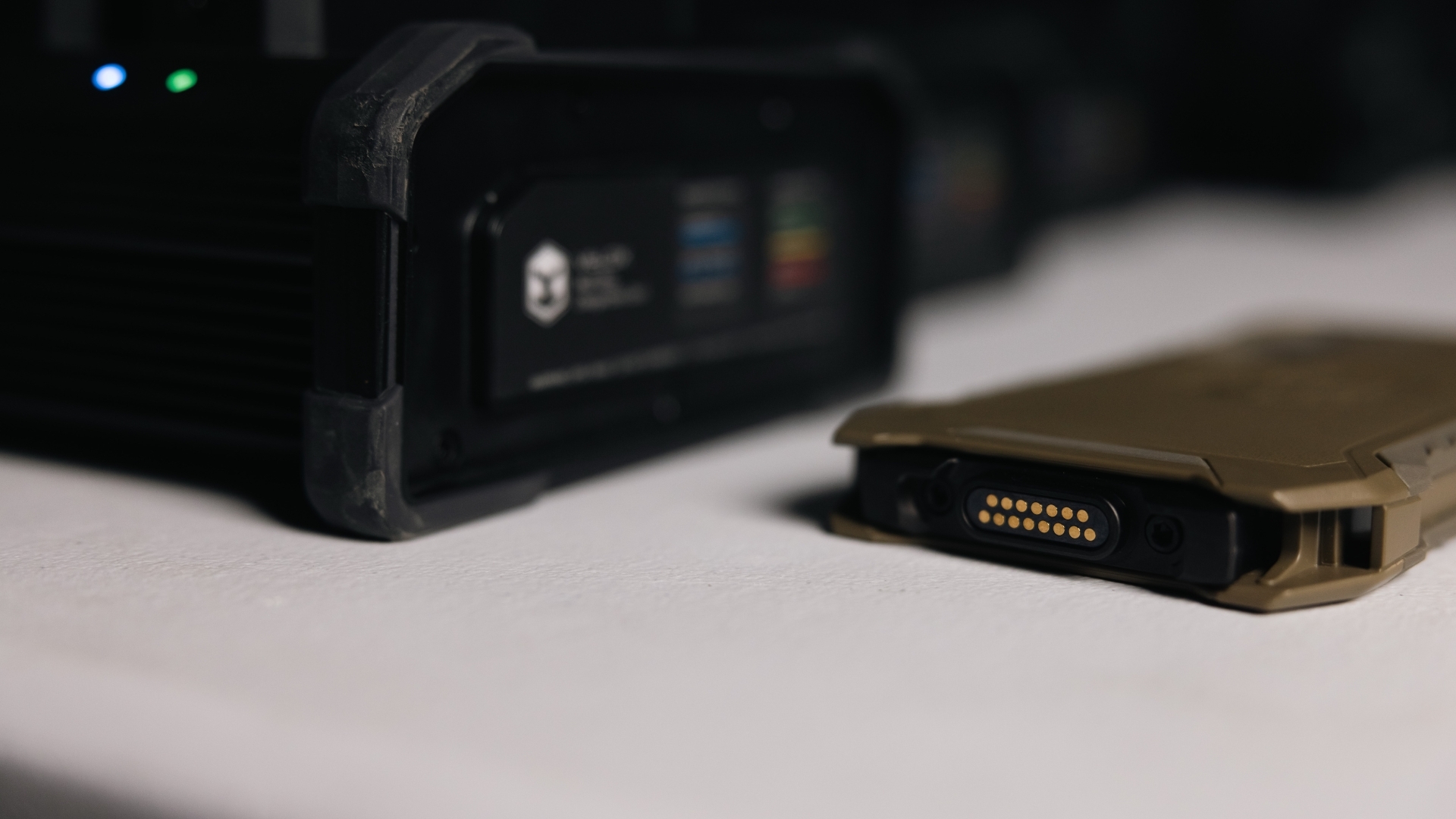

Connect

Move into VELOX.

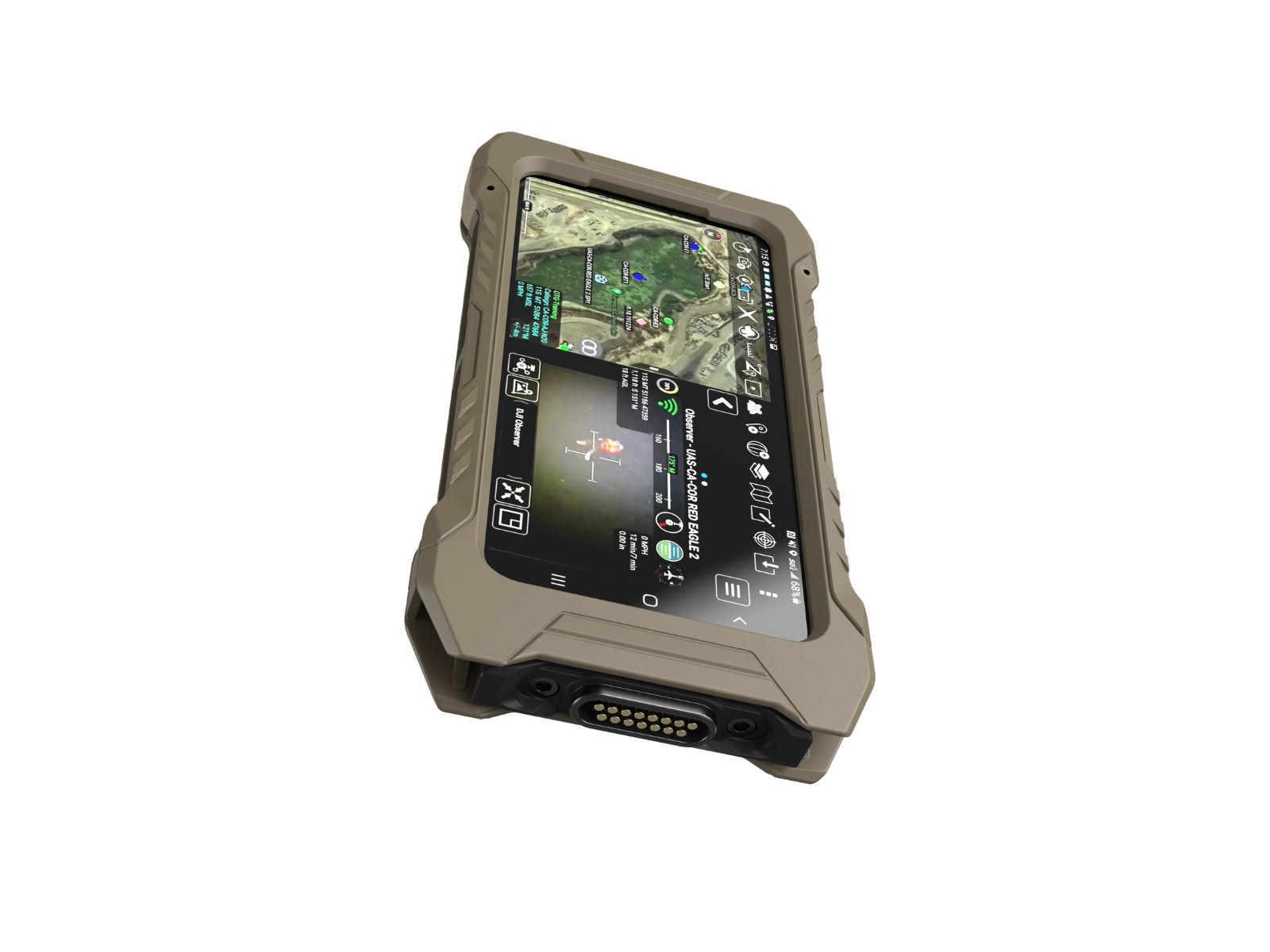

The case can now connect into a VELOX-supported mount, dock, or field cable.

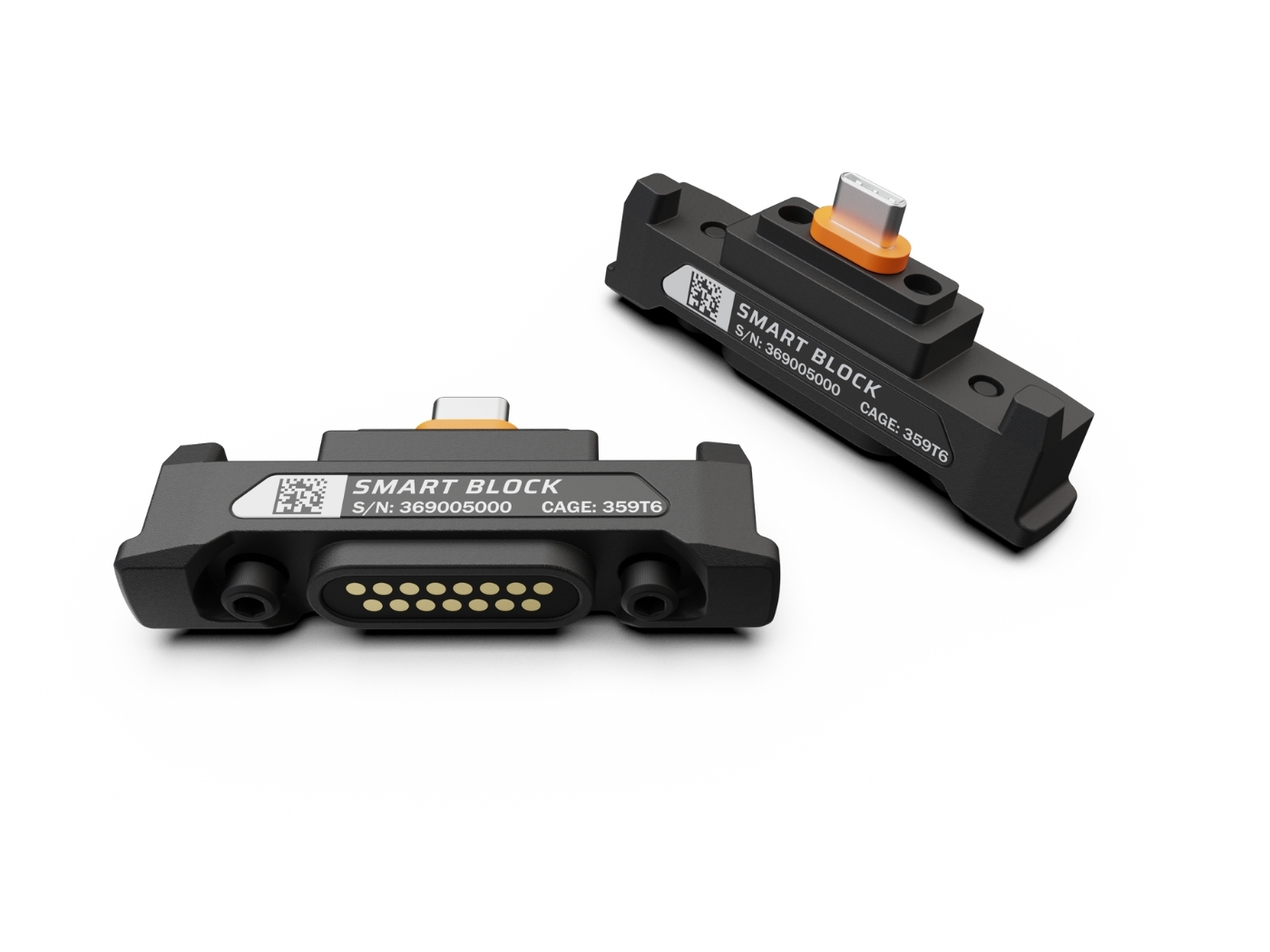

VELOX Smart-Block 15-pin pogo-pin array detail

Smart-Block Specs

Small part. Critical interface.

VELOX Smart-Block is the hardware bridge between the OPRTR case and the VELOX ecosystem. The specs below cover the case interface, seal, housing, connector system, and supported power/data connections.

Case Interface

Replaces the OPRTR Quick Disconnect door.

Install Hardware

Secures with a captive socket screw. 7/64" hex drive included.

Device Seal

Provides an IP67-rated seal to the device connection.

Housing

Nickel-plated aluminum housing.

Connector System

Shielded pogo-pin array with gold-dot contact points for repeated connection cycles.

Signal Path

Routes the EUD USB-C power and data interface through the Smart-Block connection.

VELOX Interface

15-pin array connects into supported VELOX components.

Workflow Role

Supports rapid connection, disconnection, charging, data transfer, mounting, and device turnover.

Compatibility

Compatible with all OPRTR cases and VELOX Field Cable. Note: current OPRTR case compatibility with VELOX Mount and Dock includes Samsung S23, S25, and S26. Support for other models may be developed for an MOQ of 1,000 or more.

Specifications

Replaces the OPRTR Quick Disconnect door.

Secures with a captive socket screw. A 7/64" hex drive is included.

Provides an IP67-rated seal to the device connection.

Nickel-plated aluminum housing.

Shielded pogo-pin array with gold-dot contact points for repeated connection cycles.

Routes the EUD USB-C power and data interface through the Smart-Block connection.

15-pin array connects into supported VELOX components.

Supports rapid connection, disconnection, charging, data transfer, mounting, and device turnover.

Compatible with all OPRTR cases and VELOX Field Cable. Current OPRTR case compatibility with VELOX Mount and Dock includes Samsung S23, S25, and S26. Support for other models may be developed for an MOQ of 1,000 or more.

The Juggernaut VELOX Ecosystem incorporates patented RAM^® Mount technology that practices one or more patents related to GDS^® IntelliSkin^® technology, which can be found Here .

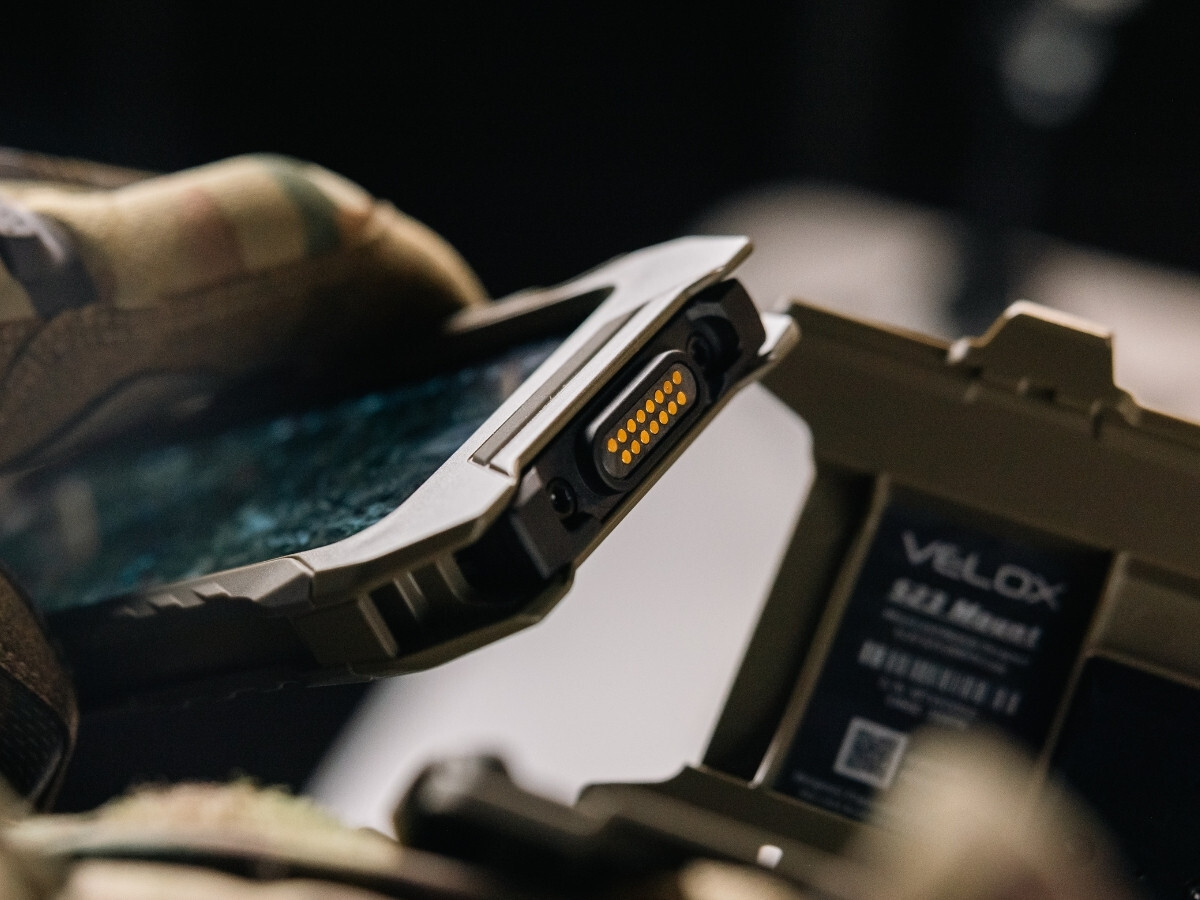

Proven connector technology.

Gold-dot contact points have been used in tactical radio systems for decades. Consistent conductivity, corrosion resistance, and repeated mating cycles.

The nickel-plated aluminum housing and shielded pogo-pin array create a rugged connection point built for frequent use in the field.
