Name: Power Delivery OPRTR Cable
SKU: JG.CBL.QDPD.01
Price: 595 USD
Availability: InStock

Description

The 5W's of a Power Delivery OPRTR Cable

Designed for operations where you need to connect your device to other tactical communications equipment via a 6-pin Nett Warrior or 12-pin ODU connector.

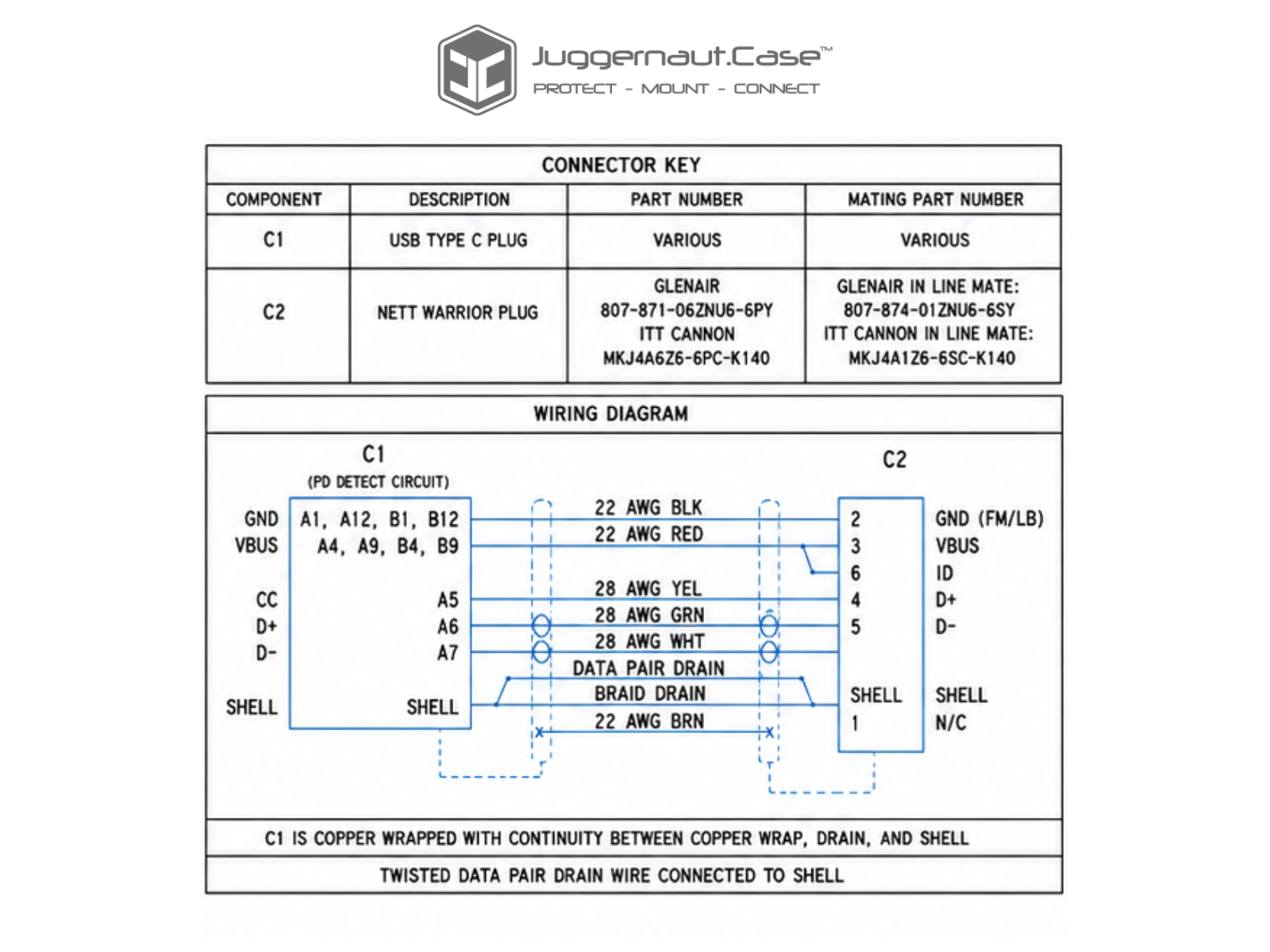

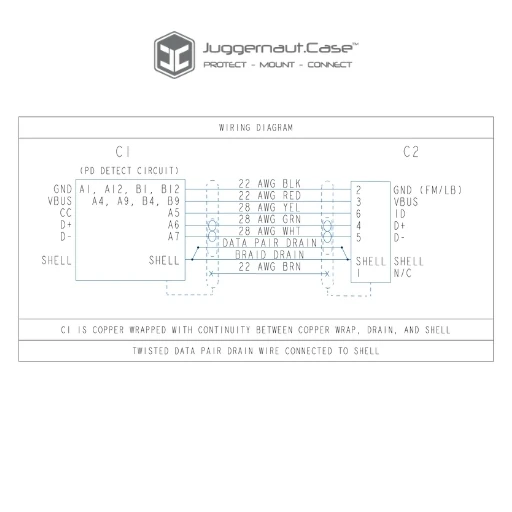

Configures your device as the data host and power sink (scroll images to see wiring diagram).

Secures to your Juggernaut OPRTR case with dual captive thumbscrews and a sealed USB-C gasket for an IP-67 rated connection to your device.

For operational scenarios where you need your device to push data out to other comms equipment while also accepting power from those peripherals (the EUD is the data host and power sink in this configuration)

Provides a rugged MIL-Spec connection during tactical operations, with environmental protection, and shielding against EMI/RFI, while enabling a 7.5W charge rate when attached to a 5V source (hub) or 2.5W (max output from a PRC-163 radio).

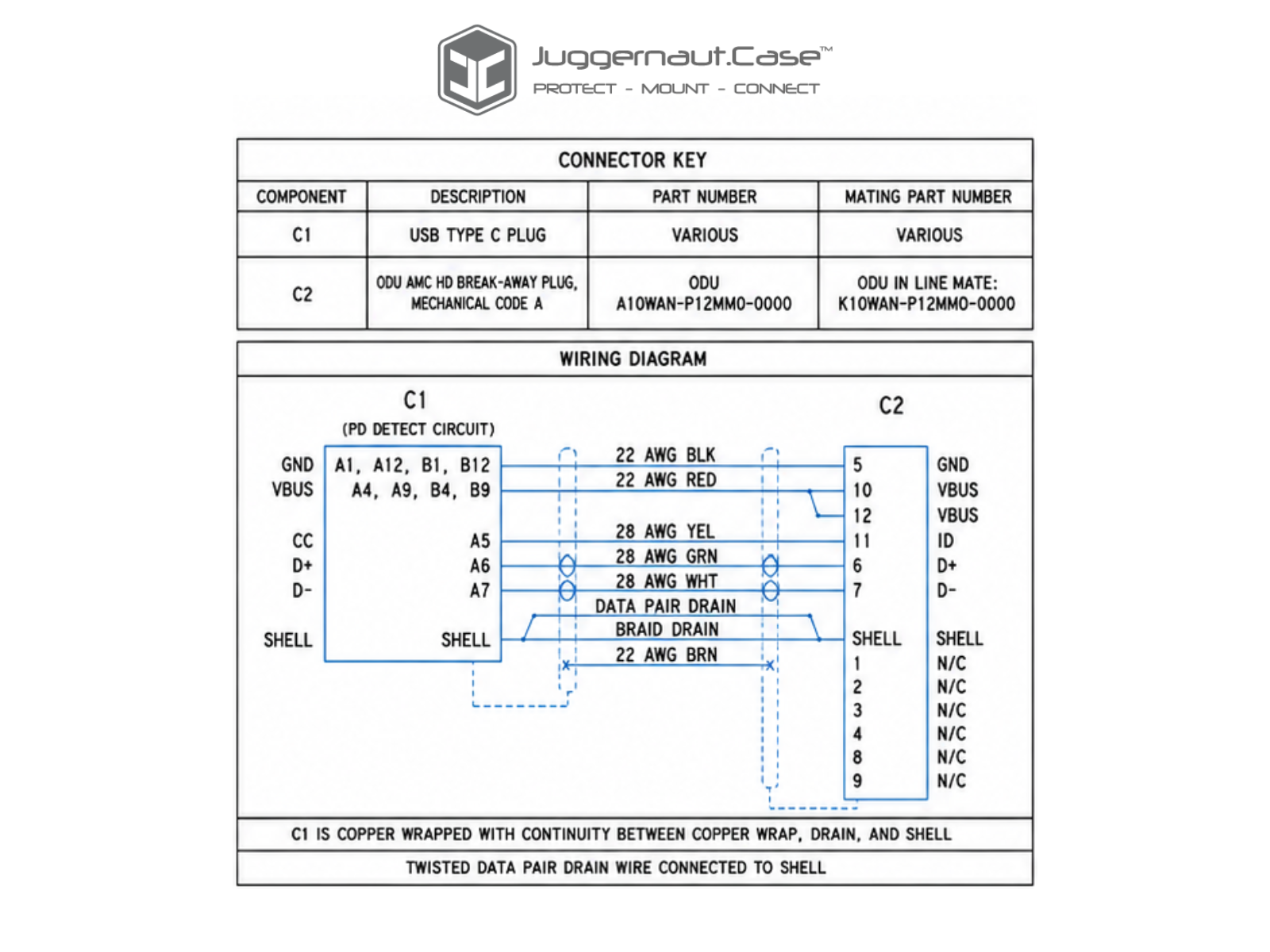

Cables with ODU 12-Pin connector can connect to 163 radio (click HERE for guide)

See more info by expanding the Details section below.

Details

Location:	Replaces the bottom door of an OPRTR case
Compatibility:	All Juggernaut OPRTR case models
Power/Data Roles:	EUD is data host and power sink
Materials:	Polyurethane jacket, overmolded strain relief, and 6-pin Nett Warrior or 12-pin ODU connector options
Weight & Dims:	2.8 ounces, 24"
Berry Compliance:	N/A
HS Code:	854442
Country of Origin:	USA
